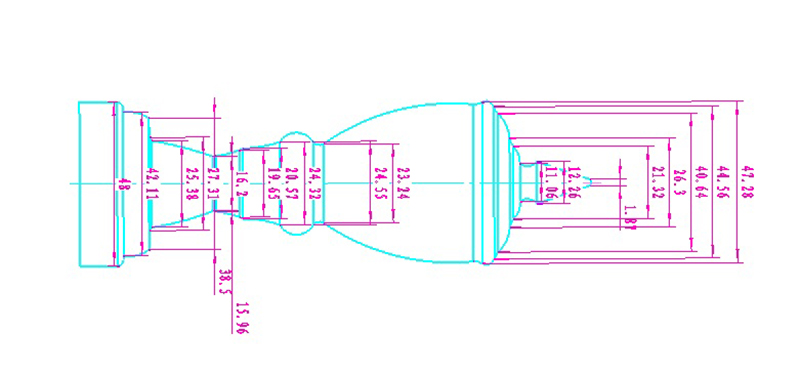

大家都知道，機械操作工的生活比較枯燥，工作之余或有閑暇之時可以做些工孔品來娛樂和放松一下。雅力士精機生產的fanuc系統數控車做工精細，精度高，穩定性高。下面我們摘抄一個做獎杯的程度，適用于fanuc系統，其它系統的朋友們可以做些適當改動。獎杯產品圖片和程序如下：

程序：

O0001;

G99G97G40;

T0101;

M03S800;

G00Z2.0;

X38.0;

G73U17R8;

G73P1Q2U0.5W0.0F0.3;

N1G01X1.32F0.1;

Z0.0;

X8.64Z-10.99;

G02X7.91Z-14.39R2.35F0.1;

G03X18.53Z-16.58R5.06F0.1;

X30.98Z-19.95R8.04;

X33.31Z-22.23R1.62;

G02X32.41Z-24.11R2.96;

G03X16.37Z-54.96R46.42;

G02X17.29Z-57.44R1.55;

G03X17.13Z-64.32R4;

G02X14.49Z-71.95R29.59;

X11.24Z-77.9R18.02;

G03X19.24Z-91.06R72.07;

G01X27.09;

G03X29.67Z-96.78R7.19;

X33.81Z-97.61R1.27;

G01X33.81Z-105.36;

N2X38.0;

G70P1Q2;

G00X100.0;

Z100.0;

M05;

M30;
